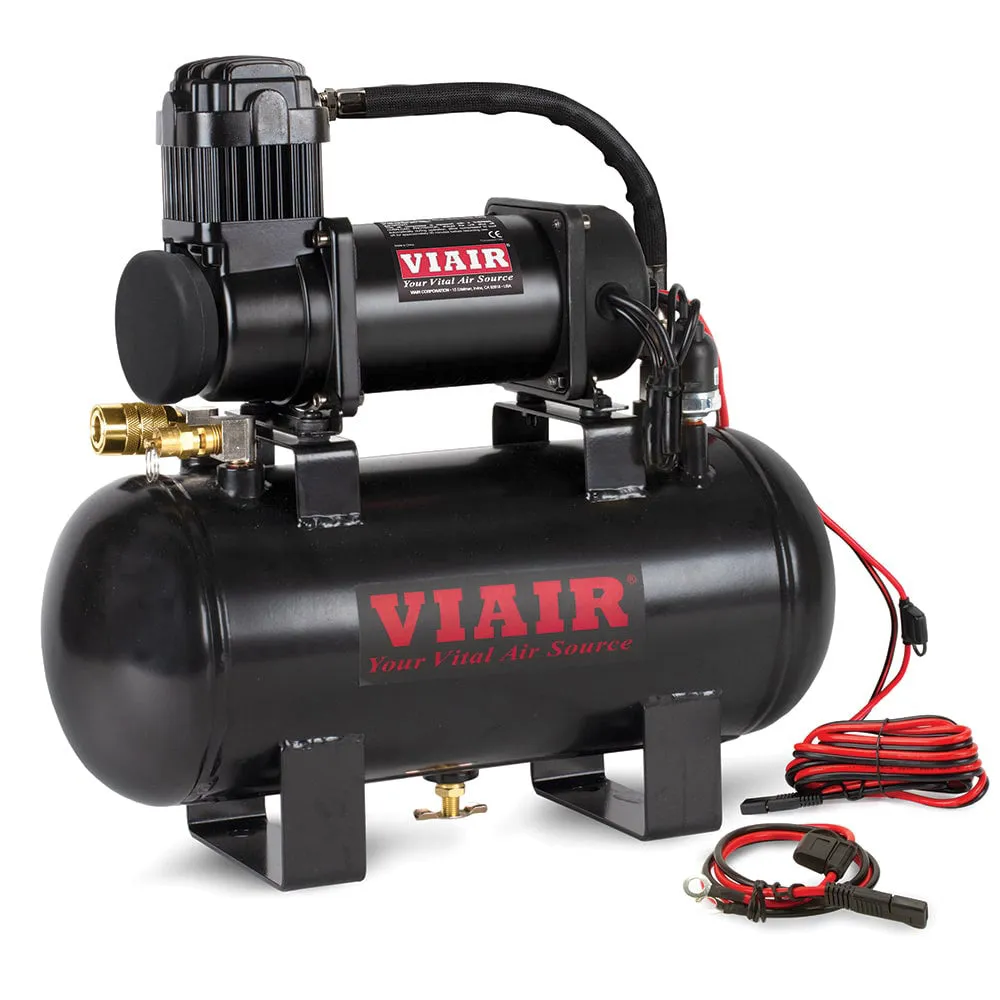

VIAIR's 120 PSI On Demand Air System is a Plug N Play solution for any enthusiast who enjoys fast tire inflation and performs multiple pneumatic tasks on the go. Features a 1.5 Gallon tank, pre-wired 120 PSI pressure switch, 1/4″ NPT brass drain cock, 1/4″ NPT ASME Coded and certified safety valve and 1/4″ quick connect coupler pre-installed. The Kit has an onboard ON/OFF switch and can be easily installed in the vehicle using the SAE terminal ring attachments and mounting hardware included.
Features:
- 1.5-gallon air tank.

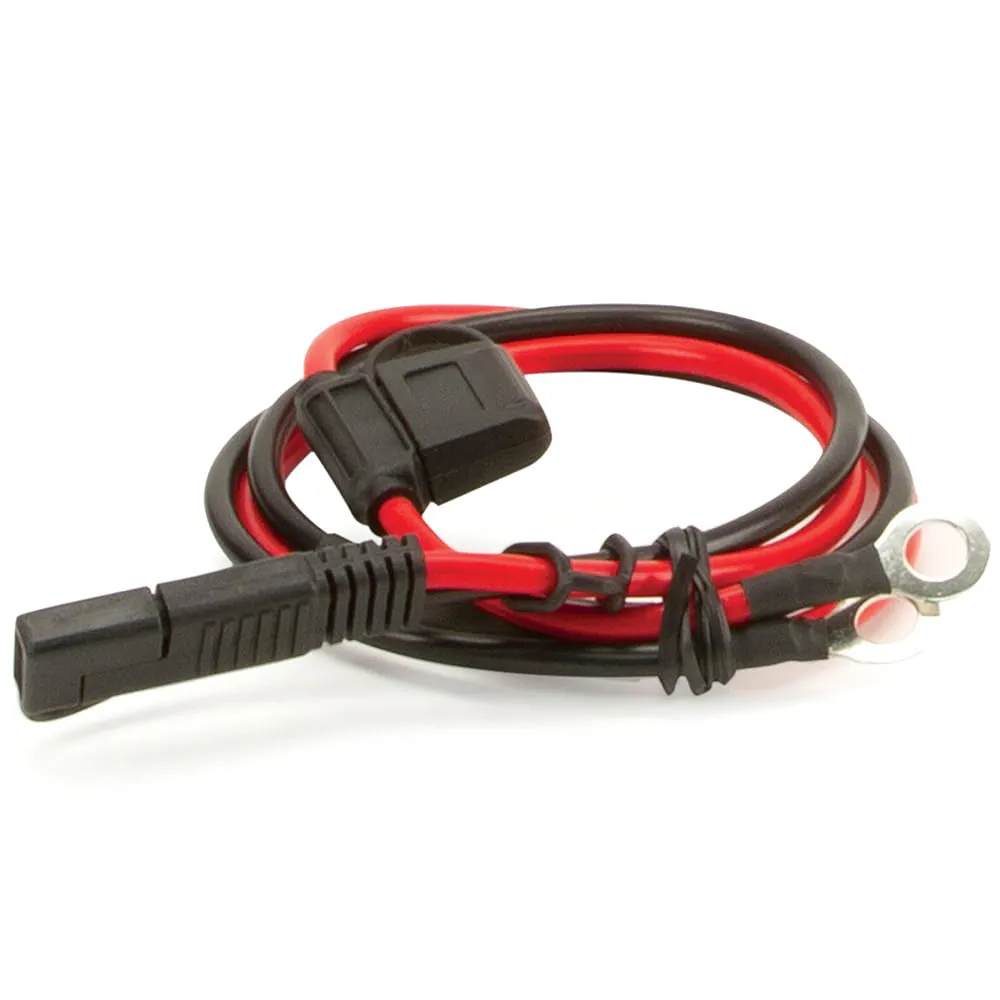

- 2-Pin SAE connector attachment with terminal rings.
- 40-amp inline fuse holder.
- Mounting hardware.
Specifications:
- 12-volt.
- Permanent magnetic motor.
- Duty cycle: 25% @ 100 PSI.
- Max. working pressure: 120 PSI.
- Max. amp draw: 30-amps.
- Ingress protection rating: IP54.
- Max Ambient Temp: 158°F.
- Min Ambient Temp: -40°F.
- Dimensions: 15.2″L x 5.9″W x 12.8″H.
- Net weight: 15.65 lbs.
Recommended components:
- 160PSI tire inflator kit (P/N 00043).
- 180 PSI digital tire inflator kit (P/N 00044).
- Blow gun (P/N 00045).
- Inline pressure regulator (P/N 90150).
